DY-AP3015 30W x2 Class D Stereo Amplifier Board with Volume Control, 8-24V
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

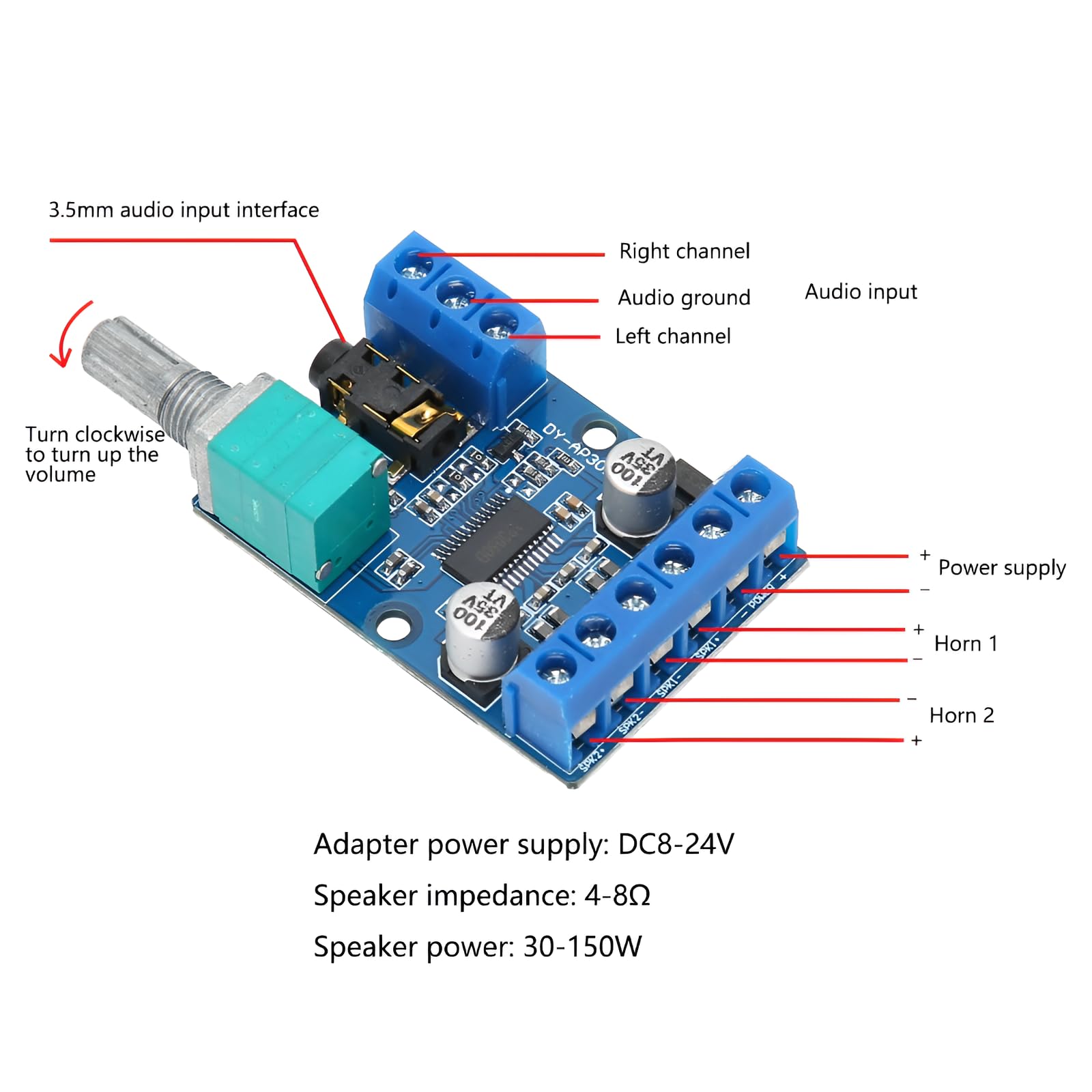

•30W x 2 Stereo Output: Class D digital power amplifier board supports dual-channel audio with PWM modulation for clear, smooth sound in DIY speaker and amplifier projects
•Wide DC 8V to 24V Input: DYAP3015 amplifier module works with 12V or 24V power setups, giving builders flexible options for compatible home audio and electronics assemblies
•Speaker Matching Flexibility: Supports 4 ohm speakers with 8V to 12V power and 8 ohm speakers with 8V to 24V power, with output levels up to 30W x 2 at 24V 8 ohm with heat sink required

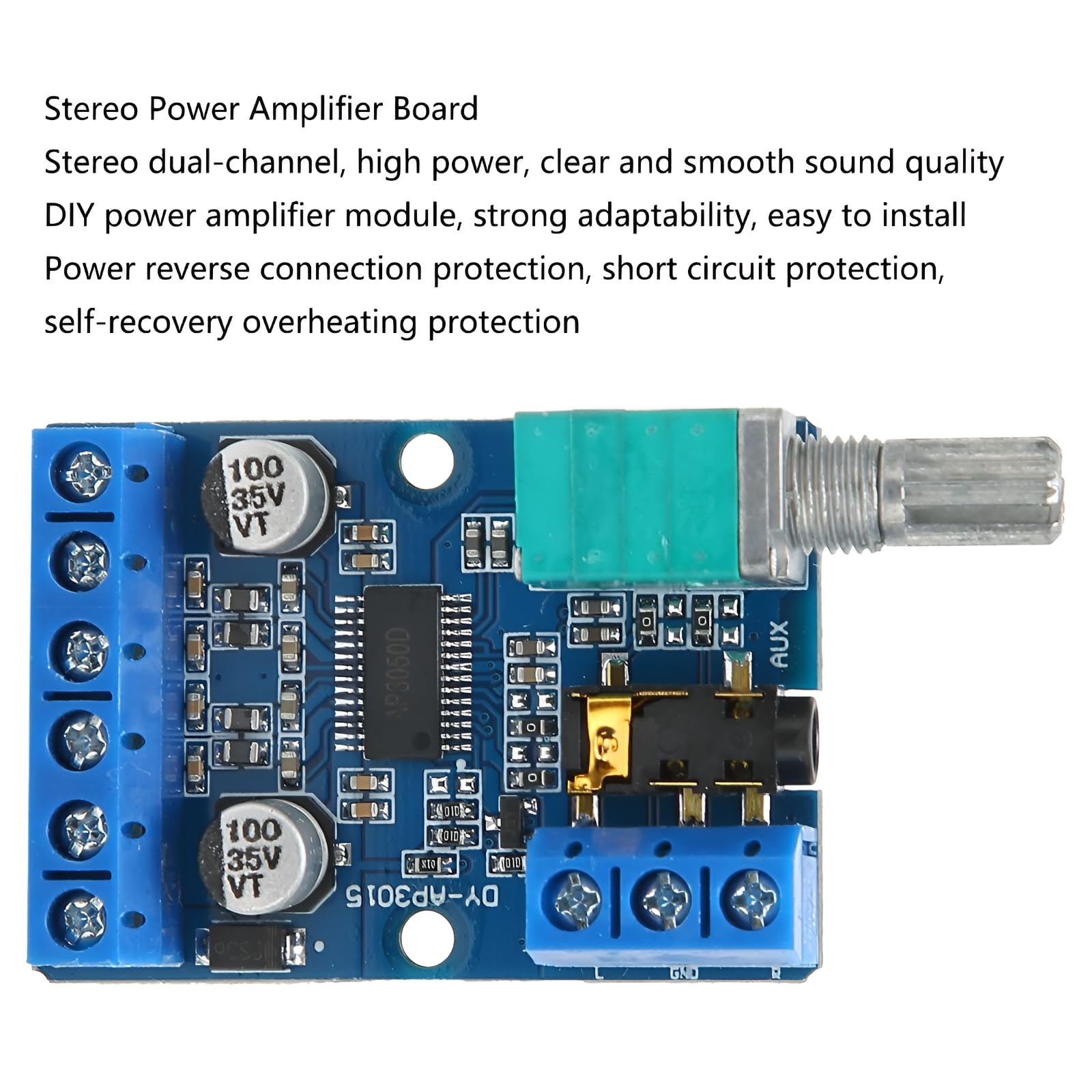

•Built-In Protection Design: Includes power reverse connection protection, short circuit protection, and self-recovery overheating protection to support safer DIY installation and testing

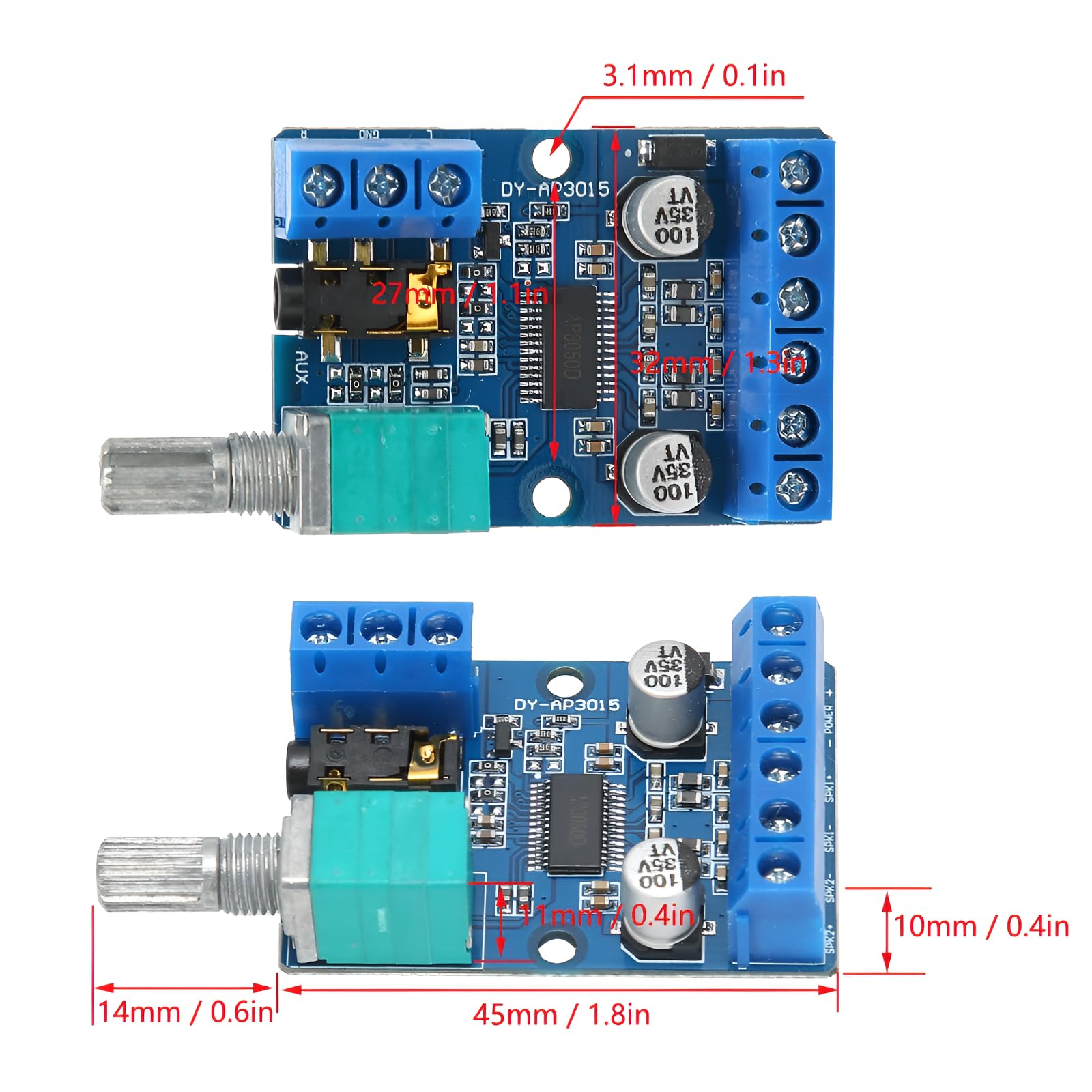

•Compact DIY Module: Blue PCB board measures about 45 x 32 mm and includes volume control, making it easy to install in modified speakers, repair projects, and custom audio builds
