KNACRO -50 ℃ ~ + 125℃ Digital Display Temperature Control, Precision Temperature Controller, Temperature Control switches, Miniature Thermal Control Plate DC 24V Blue Led
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Temperature range: -20 ° C to + 100 ° C (-58 ° F to 257 ° F); temperature measurement accuracy: 1 ° C; resolution: 0.1 ° C from -9.9 ° C to 99.9 ° C, and 1 ° C from other temperature ranges;Temperature measurement accuracy: 1 ℃; return difference: 0.1 ℃; refresh frequency: about 0.5S;
•Control board operating voltage: DC 12V; Controlled load: DC14V 10A Max / AC 125V 10A Max;low power consumption: static current≤35MA; attract current: ≤65MA. Equip with 3 digits 0.28 "digits LED digital tube, Red digital display, clear and easy to read.

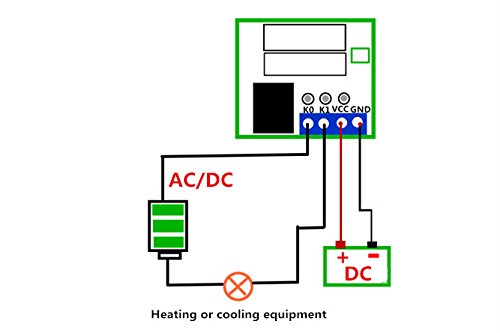

•Circuit connection: Connect the power supply and load with reference to the circuit diagram. At this time, the digital tube will display the actual measured temperature value. If the temperature sensor is missing or damaged, the digital tube will display "---". The buyer must check whether the temperature sensor is installed before using it.
•The temperature control output is a 10A relay, which can meet various high-power loads. Please ensure that the wiring is correct.
