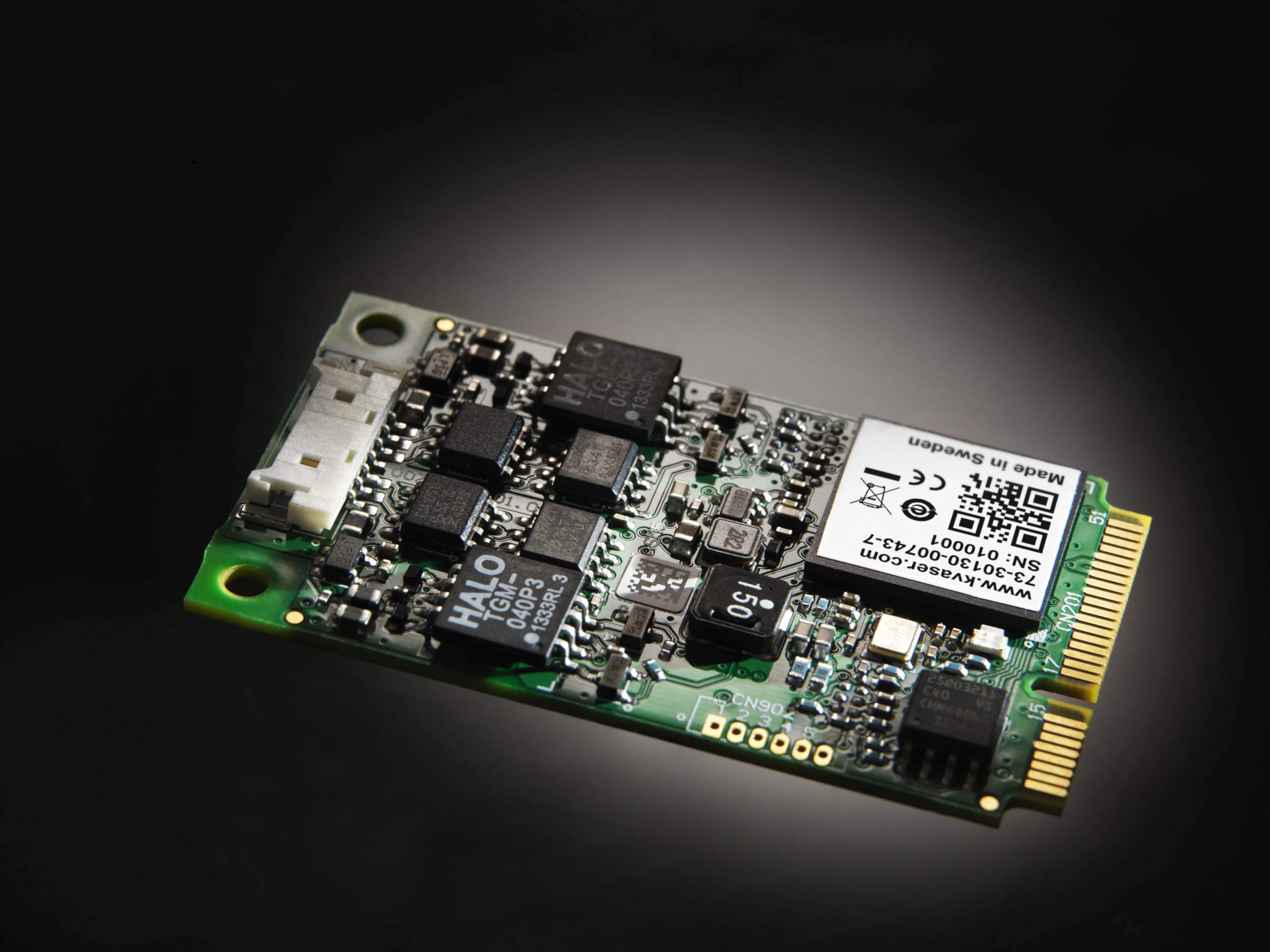

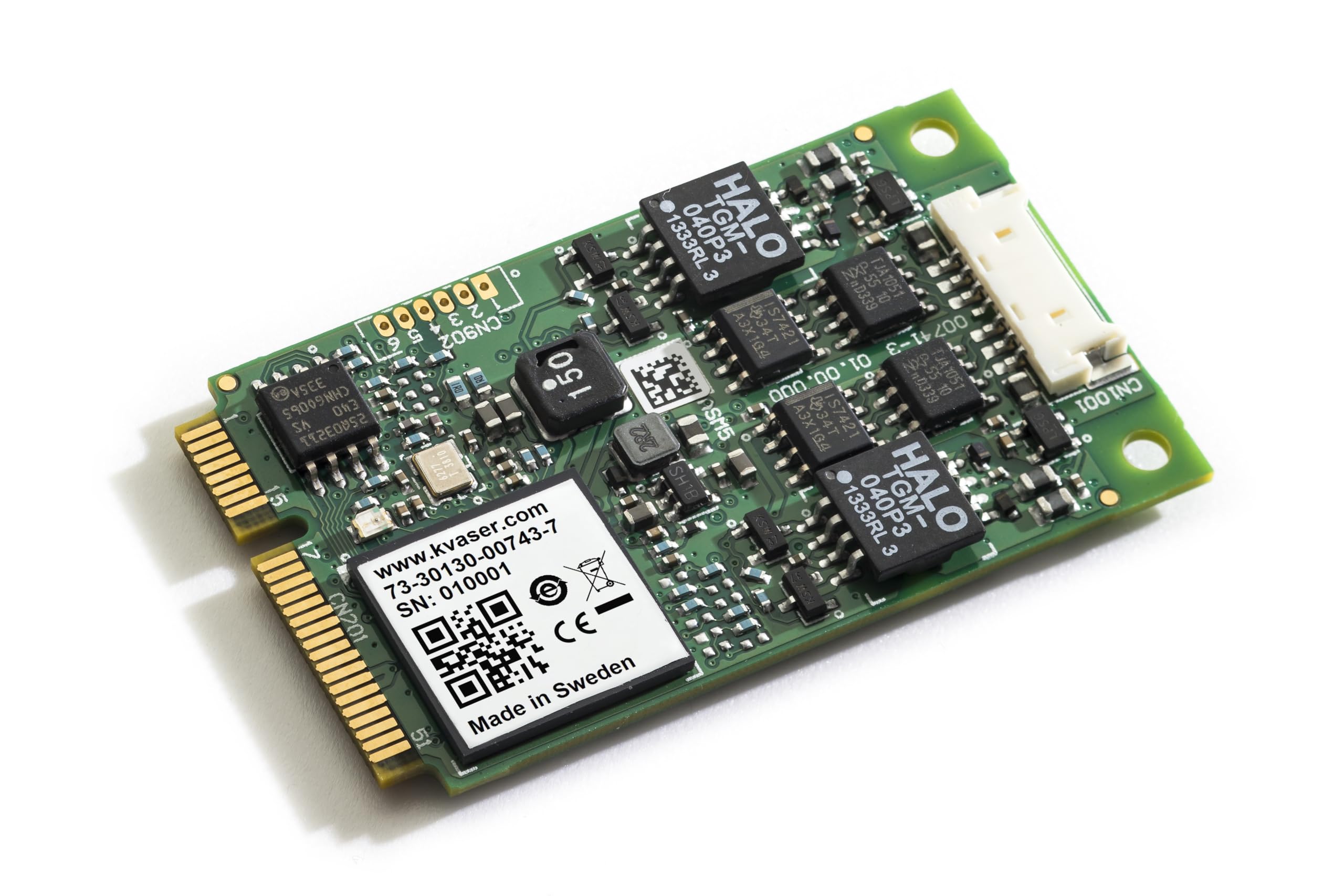

Kvaser Mini PCI Express 2xHS
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Adds two high speed CAN channels to any standard computer board with Mini PCI Express capability.
•Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
•Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s. Time stamp accuracy is 25 µs.

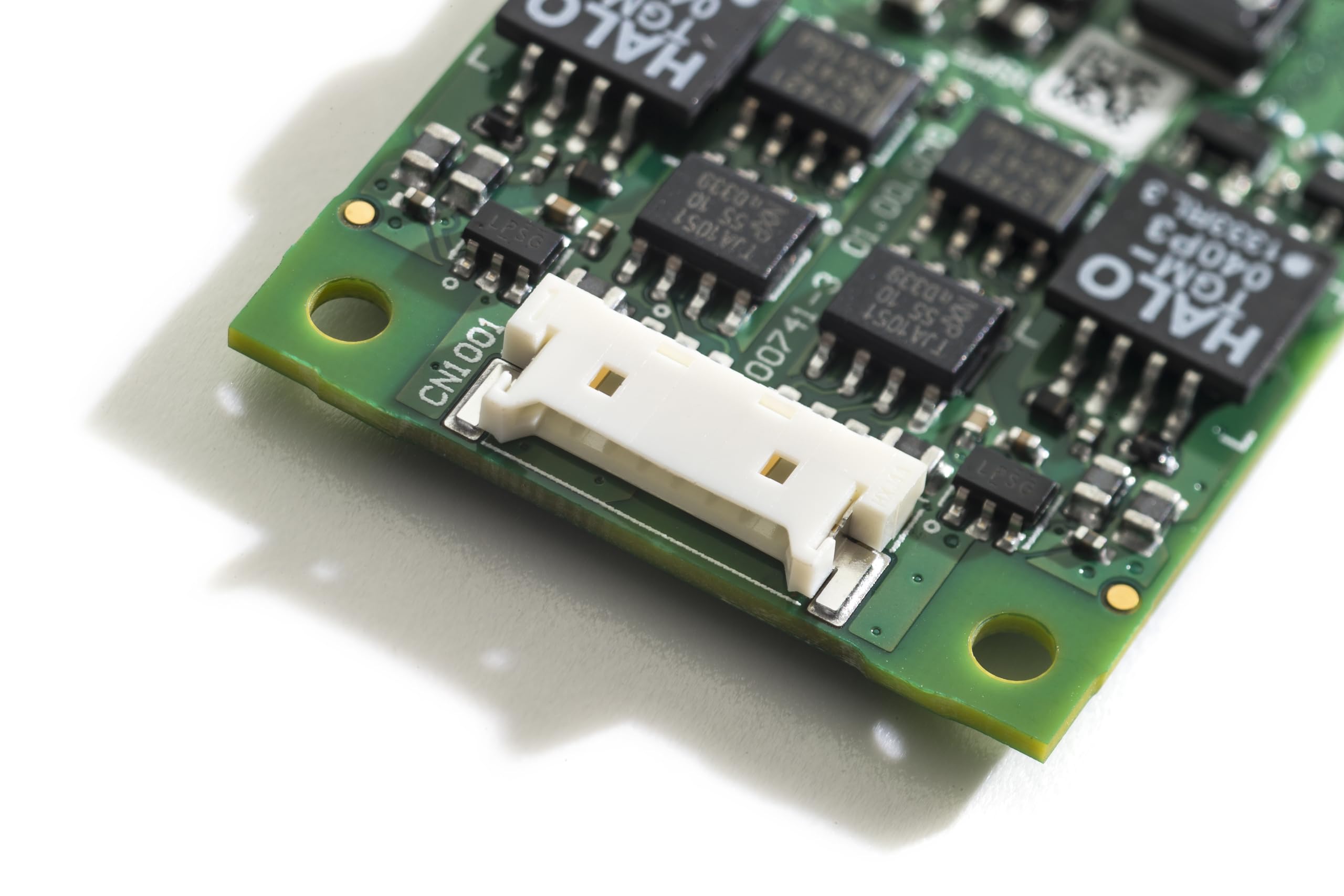

•A 7 pin Molex connector provides dual CAN channel access. Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
•Kvaser’s included CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
•Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
