Specification:
Description:

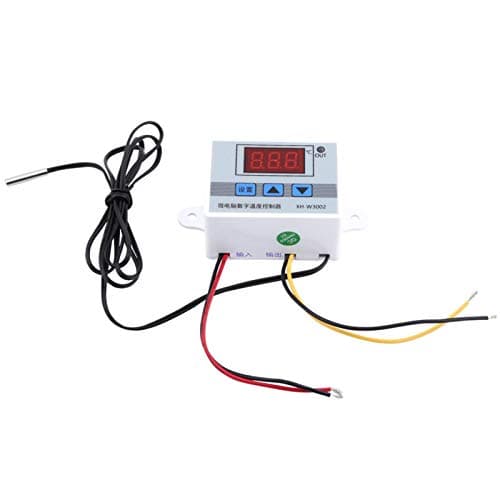

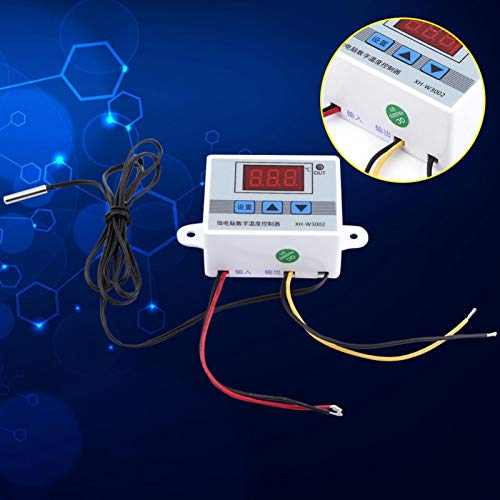

This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃. It is convenient to install and wiring is simple. With high and service life, it can completely replace the mechanical temperature controller.
Features:
ABS flame retardant housing is avirulent and environmental protective, service life and will not discolor or be out of shape.
Probe used stainless steel material shell and sealing treatment, waterproof and does not .
Wide temperature control range from -50℃ to 110℃ and high temperature control of 0.1℃.
Can be installed directly or embedded in industrial control equipment panel, convenient and quick.
Widely used in the hatching area, equipment case, conditioning system, temperature control and other fields.

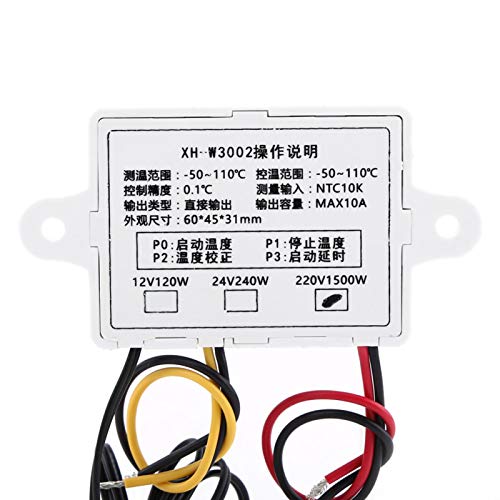

Specifications:
Input Voltage: DC12V, DC24V, AC220V(Optional)
Output Voltage: Equal to input voltage
Temperature Measurement Range: -50~110℃
Temperature Control Range: -50~110℃
Temperature Measurement : ±0.2℃
Temperature Control : ±0.1℃
Load Power: 120W(12V), 240W(24V), 1500W(220V)
Measuring Input: NTC10K 1 meter waterproof probe
Output: 10A
Installation Hole Distance: 73mm / 2.87\"
Hole Diameter: 4mm / 0.15\"
Size: 60 x 45 x 31mm / 2.36 x 1.77 x 1.22\"
Instruction:
CodeFunctionSetting RangeDefault
P0Start Up Temperature-50 to 100℃00
P1Shut Down Temperature-50 to 100℃00
P2Calibration Temperature-10 to 10℃0℃
P3Delay Start0 to 10 minutes0 minuteP0: Press Set to enter menu, display shows P0. Press Set again and press Up or Down to set start up temperature.
P1: Press Set to enter menu, display shows P0. Press Up or Down till display shows P1, then press Set again and press Up or Down to set shut down temperature.
P2: Press Set to enter menu, display shows P0. Press Up or Down till display shows P2, then press Set again and press Up or Down to set calibration temperature. Measured Temperature + Calibrated Temperature=Actual Temperature, for example, if measured temperature is 0.5℃ higher than actual temperature, calibrated temperature should be -0.5℃.
P3: Press Set to enter menu, display shows P0. Press Up or Down till display shows P3, then press Set again and press Up or Down to set delay start time. This function is normally used for compressor refrigeration or refrigerators, you can ignore it if you don\'t need this function.
Package Includes:
1 x Thermostat
Note: The input voltage of the AC220V temperature controller can NOT be AC110V.
Please make sure your power supply voltage is correct before you buy. Thanks for your understanding.
