UNI-T UT25CL Cable Locator AC/DC Circuit Tracer and Breaker Finder, Wall Cable Detector and Underground Cable Finder, Short/Open Circuit Detect, 8V-480V Voltage Measurement, NCV Unipolar Bipolar Test
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

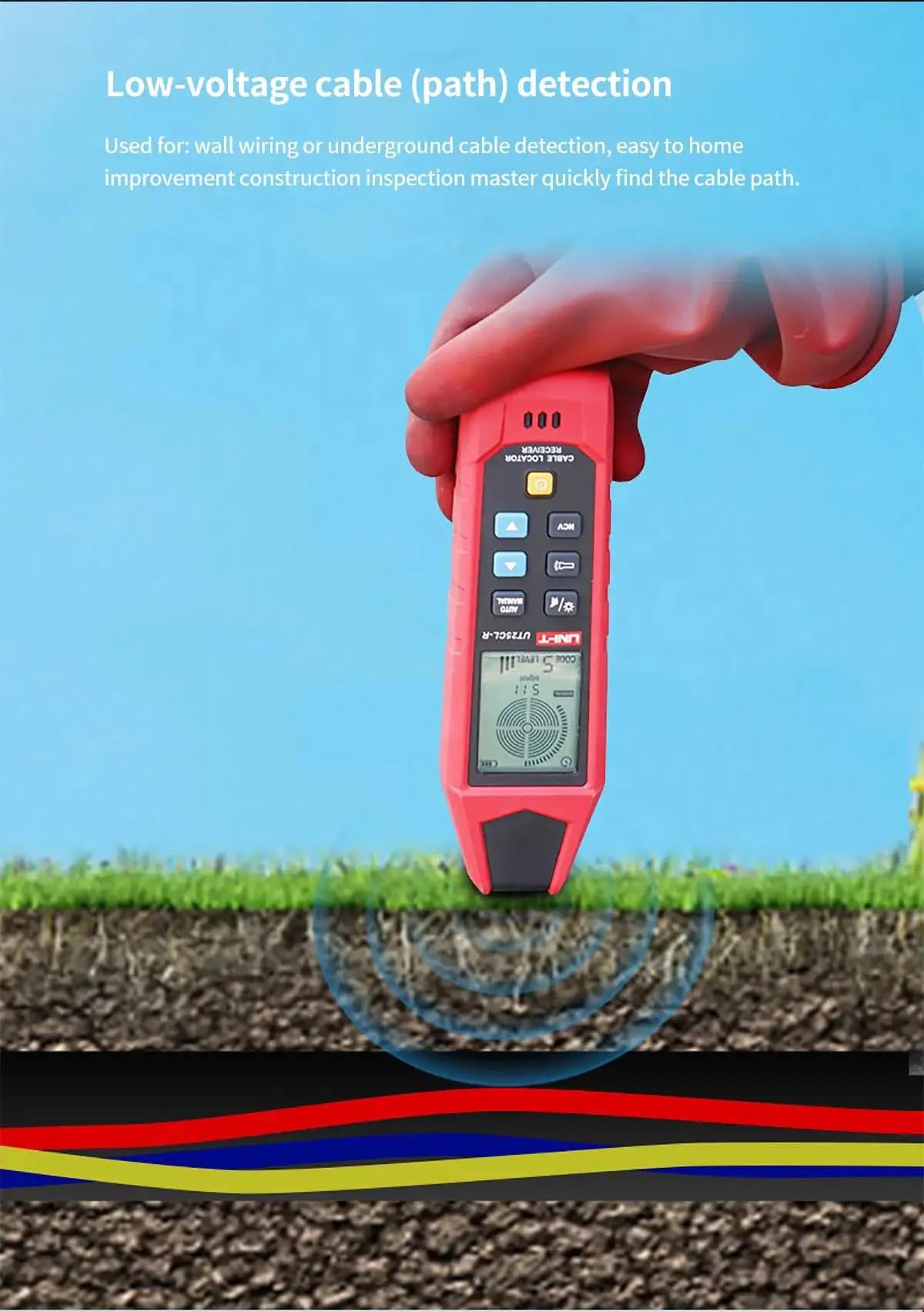

•UT25CL Circuit Tracer Kit: UT25CL Handheld Cable Locator can be used to detect the path of low-voltage cables buried in ground (such as cabling inside wall); test and diagnose opens, shorts and other problems occurring at cabling; and detect if the tested cable is energized. UT25CL include 8~480V AC/DC voltage measurement function. UT25CL Support 8 languages: English, French, German, Italian, Spanish, Swiss, Polish and Czech.

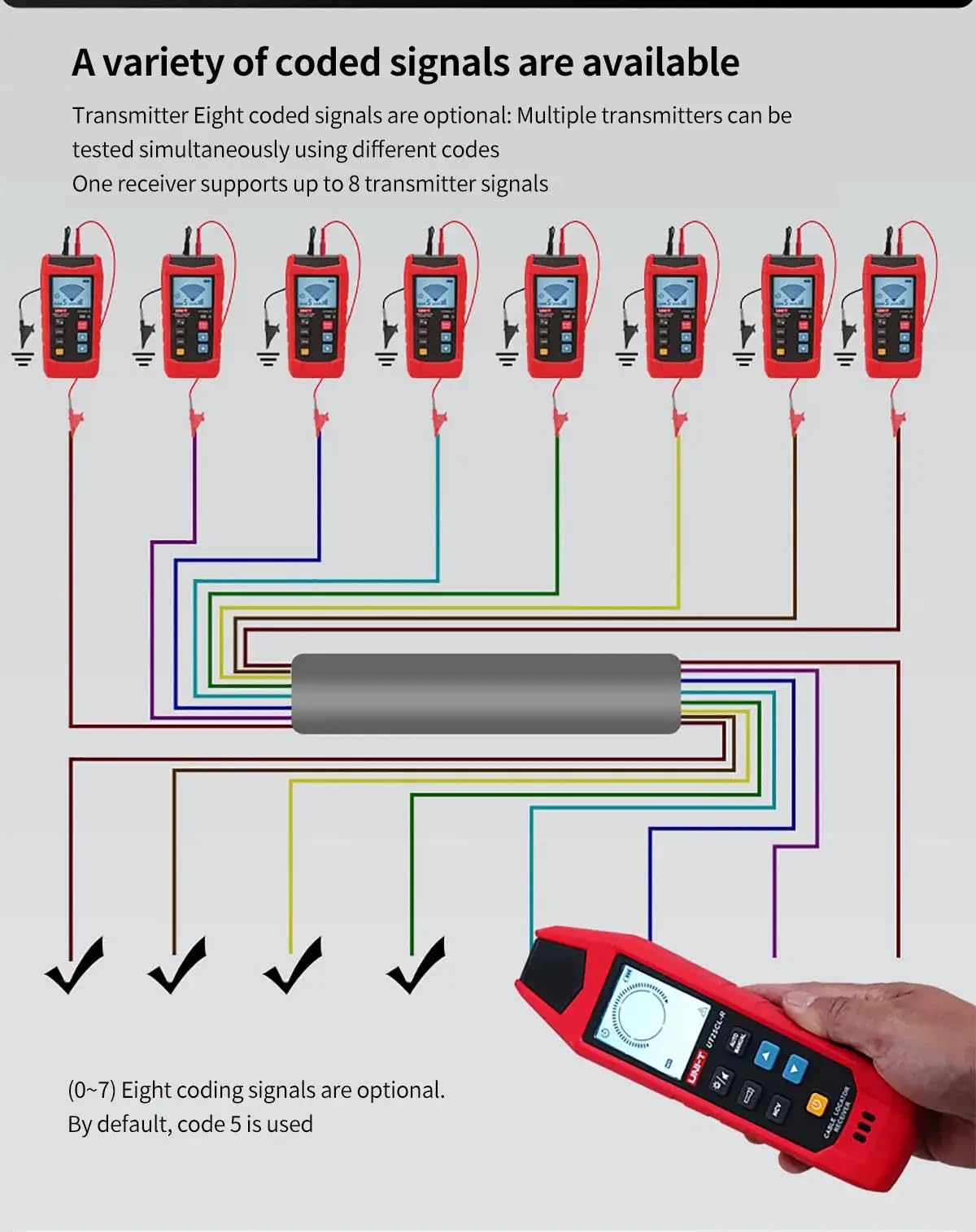

•8 Coded Signals: UT25CL supports 8 Coded signals( 0~7) ,One receiver can support up to 8 transmitters, Multiple transmitters can be used at the same time and measure according to different coded signals, enhancing cable tracing efficiency and flexibility, which is very convenient and time-saving.
•8V~480V Voltage Measurement: UT25CL voltage measurement function, measuring range: 8V~ 480V AC/DC(50/60 Hz) and recognizing DC voltage polarity ELV function can be turned on when the port access voltage is greater than 25V. Identifies short circuits, open circuits, and energized wires up to 480V, aiding in electrical safety.
•Fuse & RCD detection: The UT25CL locator can is used to find the correct RCD/GFCI or fuse location, No matter energized or none energized ones.

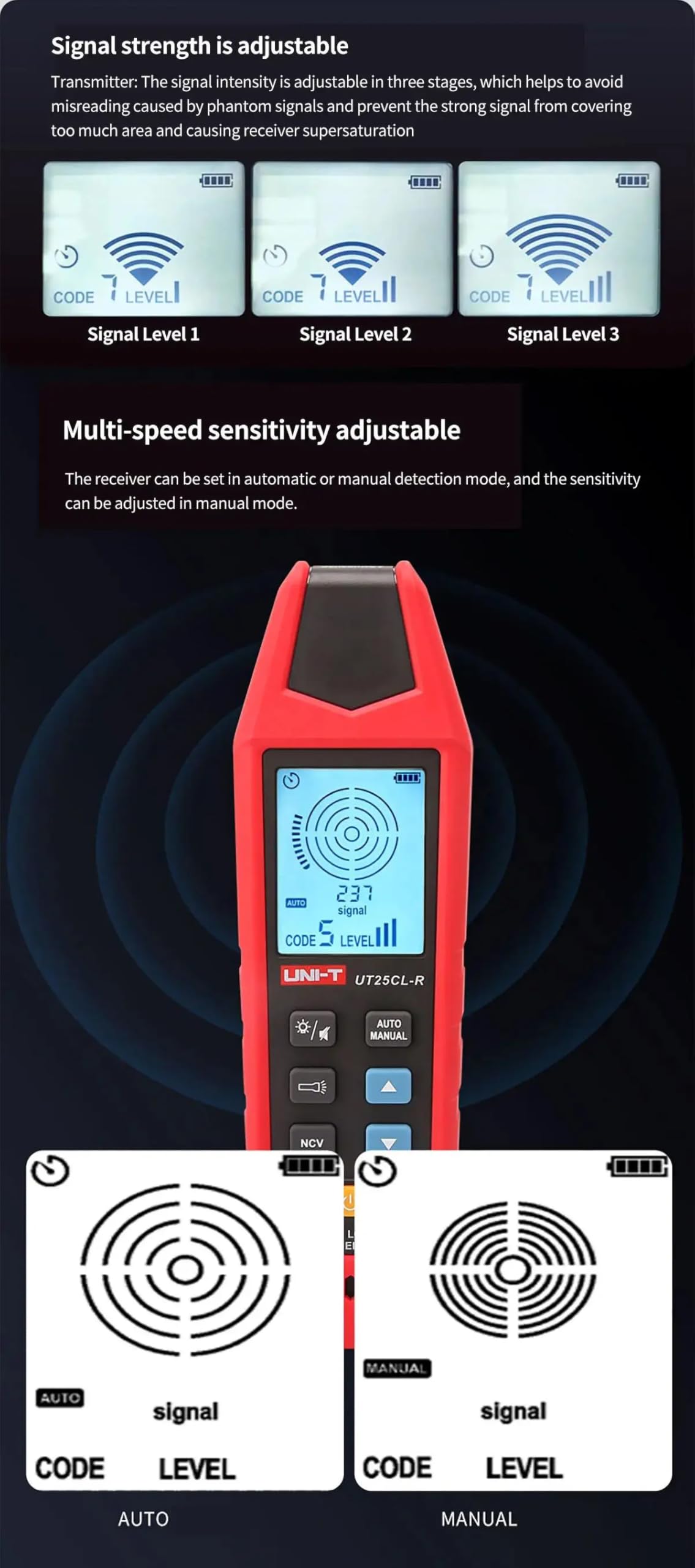

•Adjustable Sensitivity: The transmitter supports three adjustable signal levels, which effectively avoids signal interference and prevents the receiver signal saturation caused by strong signals covering too large area. UT25CL equipped with a backlit LCD and flashlight for clear readings in low-light conditions.
